What if you could control your effects simply by moving the guitar itself?
Casio has introduced the Dimension Shifter, a motion-based guitar controller that transforms physical instrument movement into real-time effects control.
Mounted directly between the guitar and strap, the system offers an alternative to traditional expression pedals by allowing players to manipulate sound through performance motion rather than foot operation.
Overview
- Strap-mounted wireless expression controller
- Motion sensing based on guitar movement
- Compatible with standard expression-enabled pedals
The Dimension Shifter converts natural playing movement into expression data, introducing a performance-driven approach to effects control.
How the Dimension Shifter Works

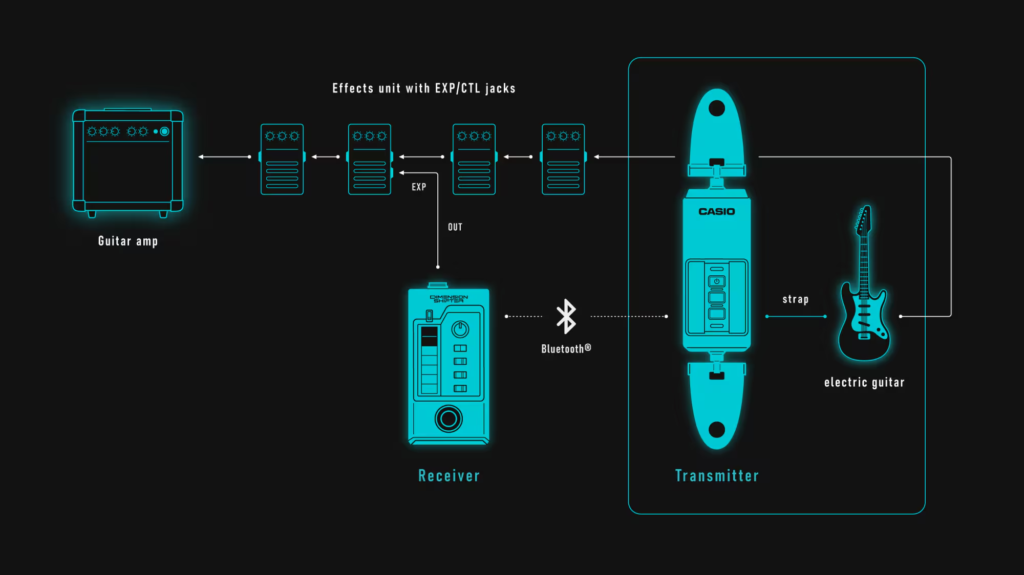

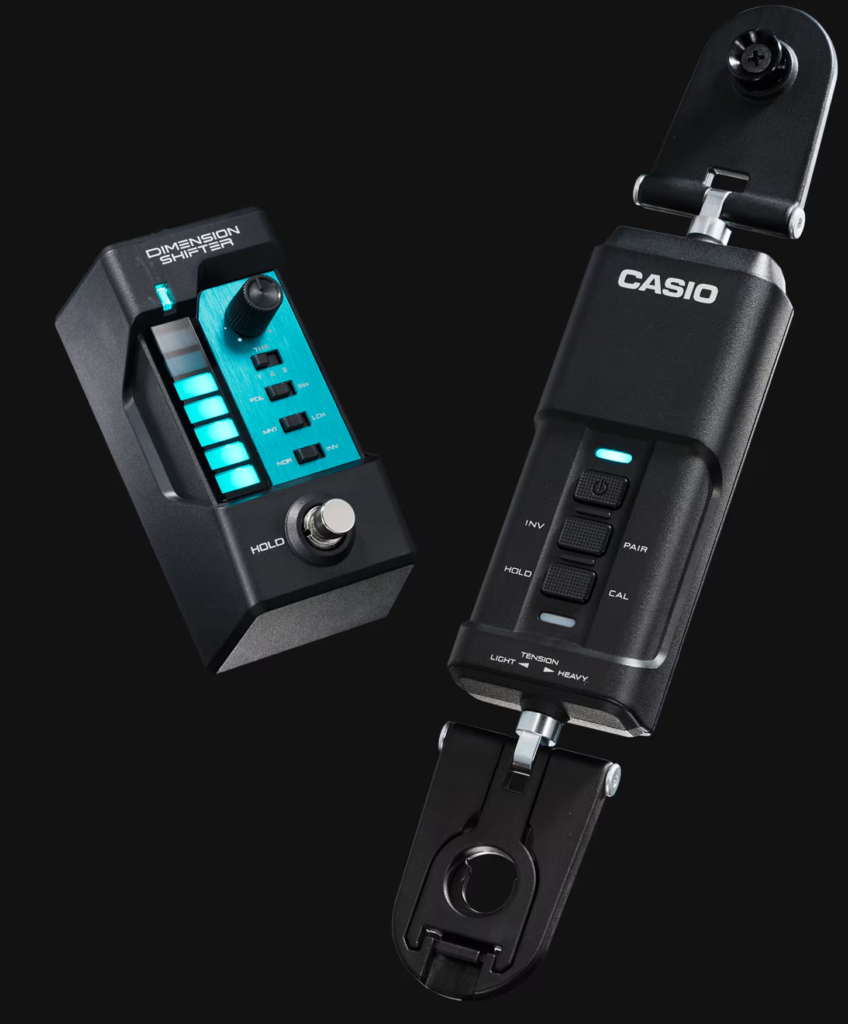

The system consists of a strap-mounted transmitter and a floor receiver.
Similar in concept to a traditional B-bender, the player controls parameters simply by moving the guitar upward or downward during performance. A spring-based mechanism inside the unit extends with movement, while an internal sensor measures the amount of motion.
This data is transmitted wirelessly to a receiver placed on the floor via Bluetooth connection.

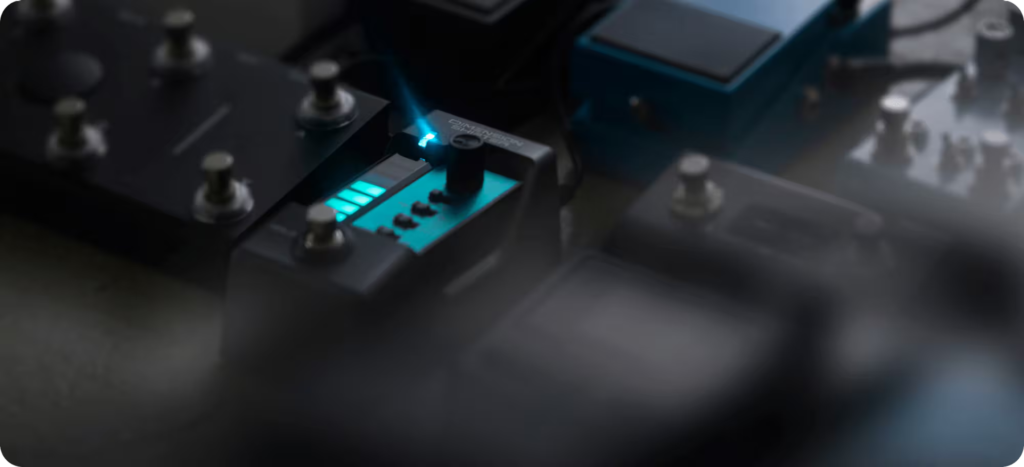

The receiver then converts the incoming motion data into a standard expression signal output through a 1/4-inch TRS connection, allowing compatibility with a wide range of pedals and processors.
As a result, any effects unit equipped with an expression input can be controlled in real time, including:
- Wah pedals
- Pitch shifting effects
- Modulation effects such as phasers
- Delay or filter parameters
The system effectively allows sound control without removing hands from the instrument or relying on foot movement.
Wireless Performance Control
The Dimension Shifter operates wirelessly between transmitter and receiver, offering an operating range of up to approximately 10 meters (30 feet).
Casio lists latency at roughly 20 milliseconds, designed to remain responsive in live performance environments.
By shifting expression control away from the pedalboard, the device enables a more physical interaction between performer movement and sound shaping.
Inspired by the B-Bender Concept
The development concept originated from admiration for B-bender playing, as used by artists such as Jimmy Page.
Traditional mechanical B-benders are often expensive and require permanent guitar modification. The Dimension Shifter project reportedly began with the idea of recreating that expressive interaction digitally — effectively envisioning a modern digital interpretation of the B-bender concept.
Casio’s Return to Guitar Innovation
Although widely associated with keyboards and electronic instruments, Casio previously explored guitar-related products during the 1980s, including unconventional hybrid instruments such as the EG-5.
The Dimension Shifter represents a renewed step into guitar-focused innovation, combining Casio’s digital engineering background with modern pedalboard workflows.
Expanded Control Features
Beyond continuous expression control, the receiver provides additional functionality designed for performance flexibility:
- Adjustable sensitivity calibration
- Expression direction inversion
- HOLD function for fixed parameter values
- Compatibility alongside traditional expression pedals
These options allow players to tailor response depending on playing style or stage movement.
First Impressions
The Dimension Shifter is highly flexible yet intentionally unconventional. Rather than replacing expression pedals outright, it introduces a different performance philosophy — one where body movement becomes part of sound control itself.
For players seeking new expressive possibilities beyond traditional pedal interaction, it stands as one of the more distinctive guitar-related releases in recent years.
Source: Casio Official Website
What is the Casio Dimension Shifter?
The Casio Dimension Shifter (DN-SE10) is a strap-mounted wireless expression controller that turns guitar movement into control signals for effects and processors.
How does the Dimension Shifter work?
A transmitter mounts on the guitar strap and senses movement. It sends the control data wirelessly via Bluetooth to a floor receiver, which outputs an expression or switch signal through a 1/4-inch TRS (6.3 mm stereo) jack.
What pedals or processors are compatible?
It works with effects units that accept expression pedal input or external footswitch control via a 1/4-inch TRS connection. Use a stereo (TRS) cable, and match the receiver’s mode and TRS setting to your device’s wiring.
What are the wireless range and latency?
The system uses Bluetooth 5.1 with an operating range up to 10 m (30 ft) depending on environment. Casio lists latency at approximately 20 ms, which can vary by usage conditions.
How is it powered?
The transmitter runs on two AAA alkaline batteries (Casio lists battery life at about 20 hours, depending on conditions). The receiver is powered by a 9V AC adapter (AD-0913S or equivalent 9V / 500 mA+ center-negative supply).
